Product details

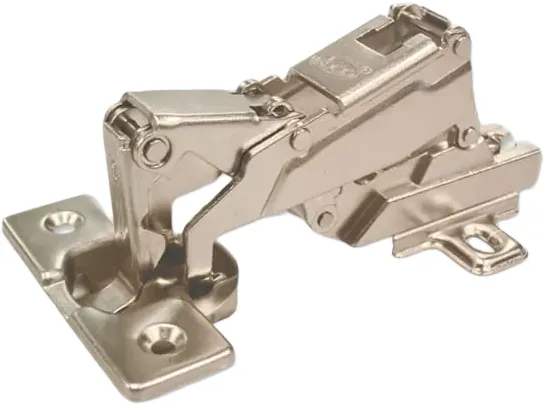

Ebco Hardware, 165º Hinge (I) - 35mm dia, Regular close 0 Crank (Full Overlay), H165-1-I
Features
Hsn code
83021010
Model number
H165-1-I
Manufacturer
Ebco Hardware
Item type name
165º Hinge
Number of packages
1
Unit count per product
2
Unit count type
Set
Item length
35
Item length unit of measure
mm
Country of origin
India
Condition type
New
Currency
INR
Sustainable green material check
No
Item imported
No
Color names
Nickel Plated
Size name
0Crank
Primary material type
Metal
Is product expirable
No
Specification

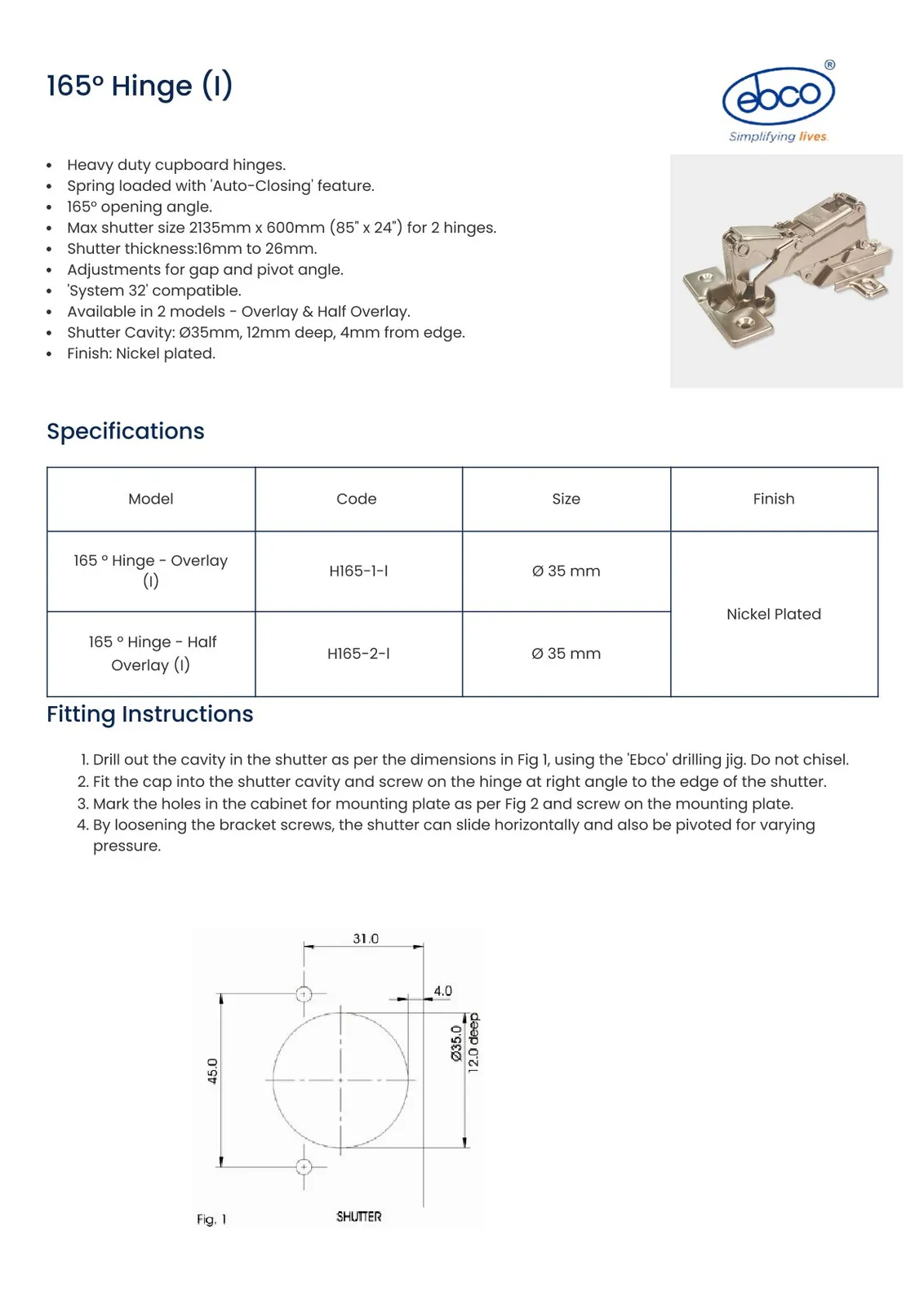

- Max. opening: 165° for wide access & Hinge cup - 35mm dia
- Special hinge for corner cabinets, bi-fold doors, special installations
- Shutter Thickness: 16–19 mm
FAQs
1. What is the maximum opening angle of this hinge?
This Ebco Hardware hinge provides a maximum opening angle of 165°, allowing for wide access to cabinet contents.2. What is the cup diameter of this hinge?
The hinge features a standard cup diameter of 35mm, suitable for common drilling requirements.3. What shutter thickness is this hinge suitable for?
This hinge is designed to accommodate shutter thicknesses ranging from 16mm to 19mm for optimal performance.4. What type of overlay does this hinge provide?
This hinge offers a 0 crank design, which results in a full overlay application for your cabinet doors.5. What is included when I purchase this product?
Each product unit is a "Set" and includes 2 individual Ebco Hardware 165° Hinges (I).6. What material is this hinge made from?
The Ebco Hardware 165° Hinge (I) is constructed from durable metal with a nickel-plated finish.7. What are the common applications for this hinge?
This special hinge is ideal for corner cabinets, bi-fold doors, and other installations requiring a wide opening angle.AI generated
Why buy from MOB
Madoverbuildings (MOB) is your trusted marketplace for quality building and construction materials. For eligible orders in Bengaluru and Mumbai, buyers can apply for MOB Credit, subject to eligibility and approval.
AI generated
Professional tips
Before purchasing, verify the exact shutter thickness of your cabinet doors. This Ebco 165° Hinge is specifically designed for shutters between 16mm and 19mm, ensuring proper fit and function for full overlay applications.
AI generated
Ebco Hardware 165° Hinge (I) Cup Diameter 35mm Regular Close 0 Crank (Full Overlay) Nickel Plated Finish code: H165-1-I
