Product details

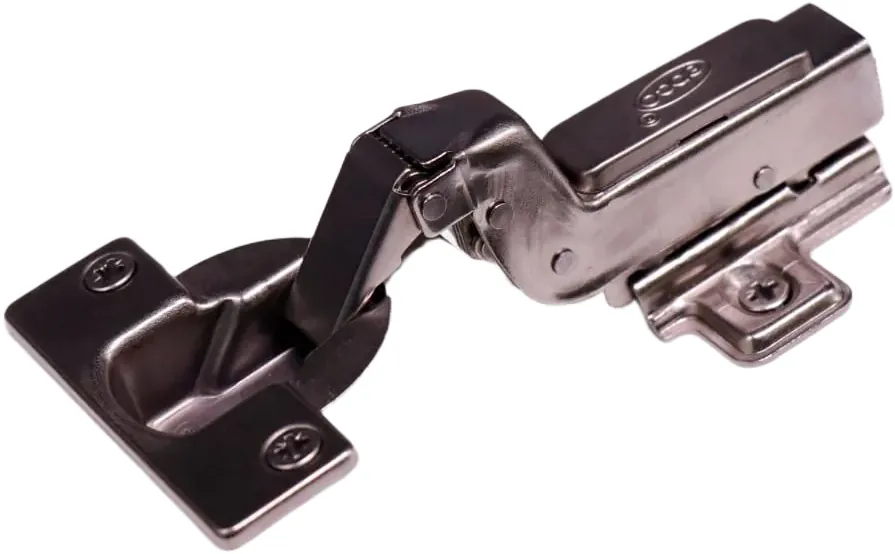

Ebco Hardware, Thick door hinge - Regular close, Auto hinges 18mm to 30mm door thickness
0 Crank (Full Overlay), HTD1
Features
Hsn code
83021010
Model number
HTD1-SC
Manufacturer
Ebco Hardware
Item type name
Thick door Hinge
Number of packages
1
Unit count per product
2
Unit count type
Set
Item length
40
Item length unit of measure
mm
Country of origin
India
Condition type
New
Currency
INR
Sustainable green material check
No
Item imported
No
Color names
Nickel Plated
Size name
0Crank
Primary material type
Metal
Is product expirable
No

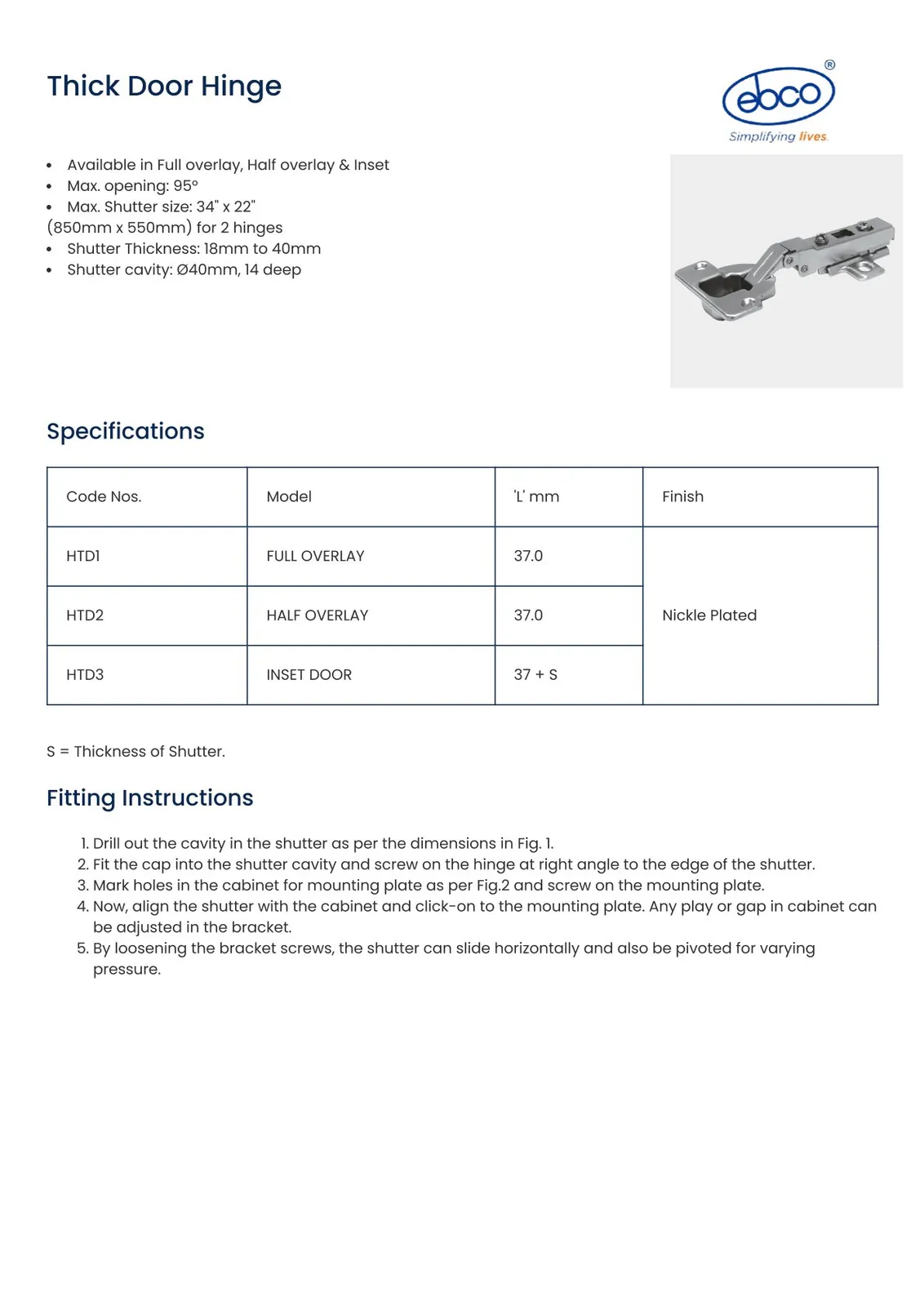

Specification

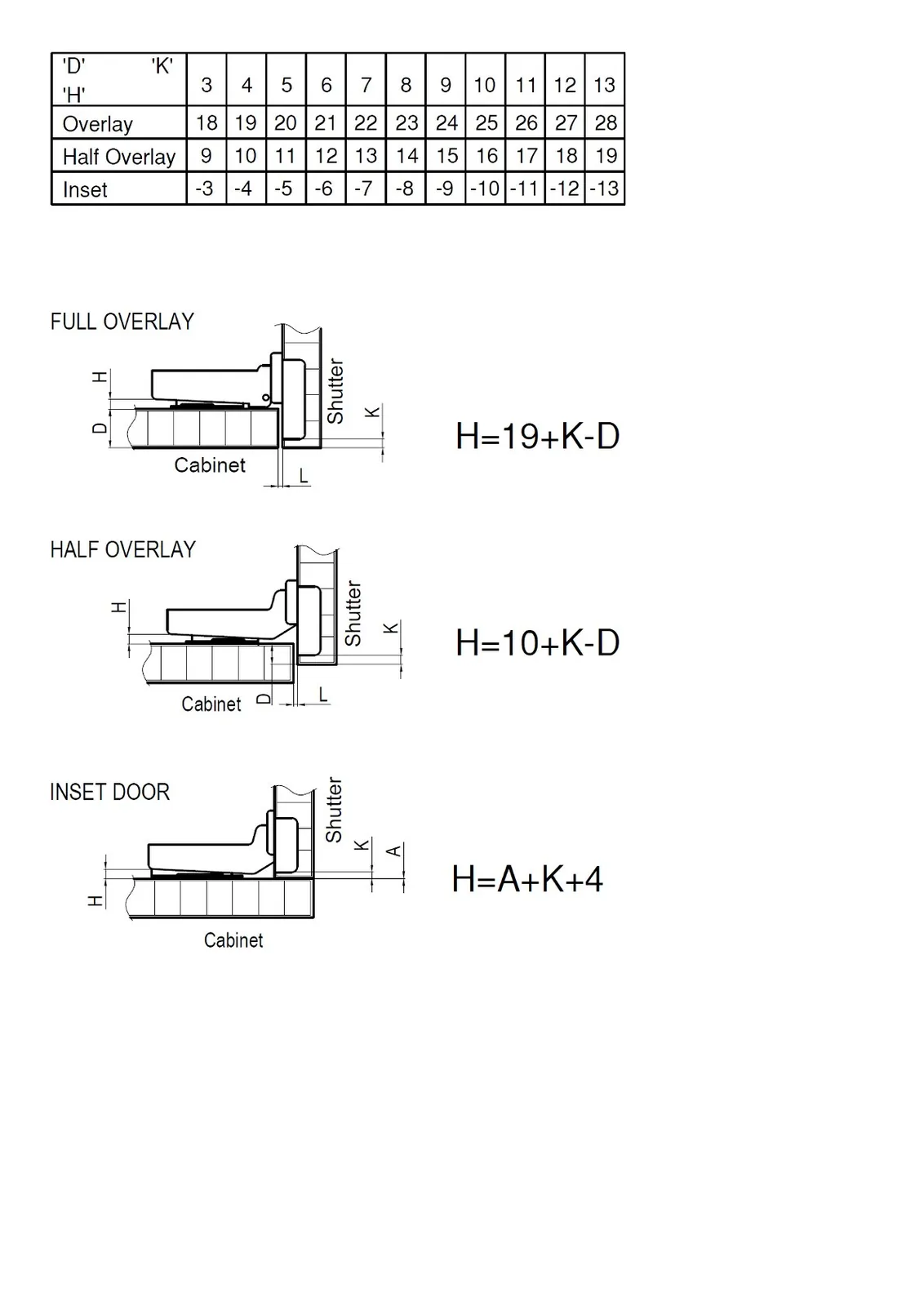

- Available in Full Overlay, Half Overlay & Inset
- 3D Mounting Plate with 3D adjustments

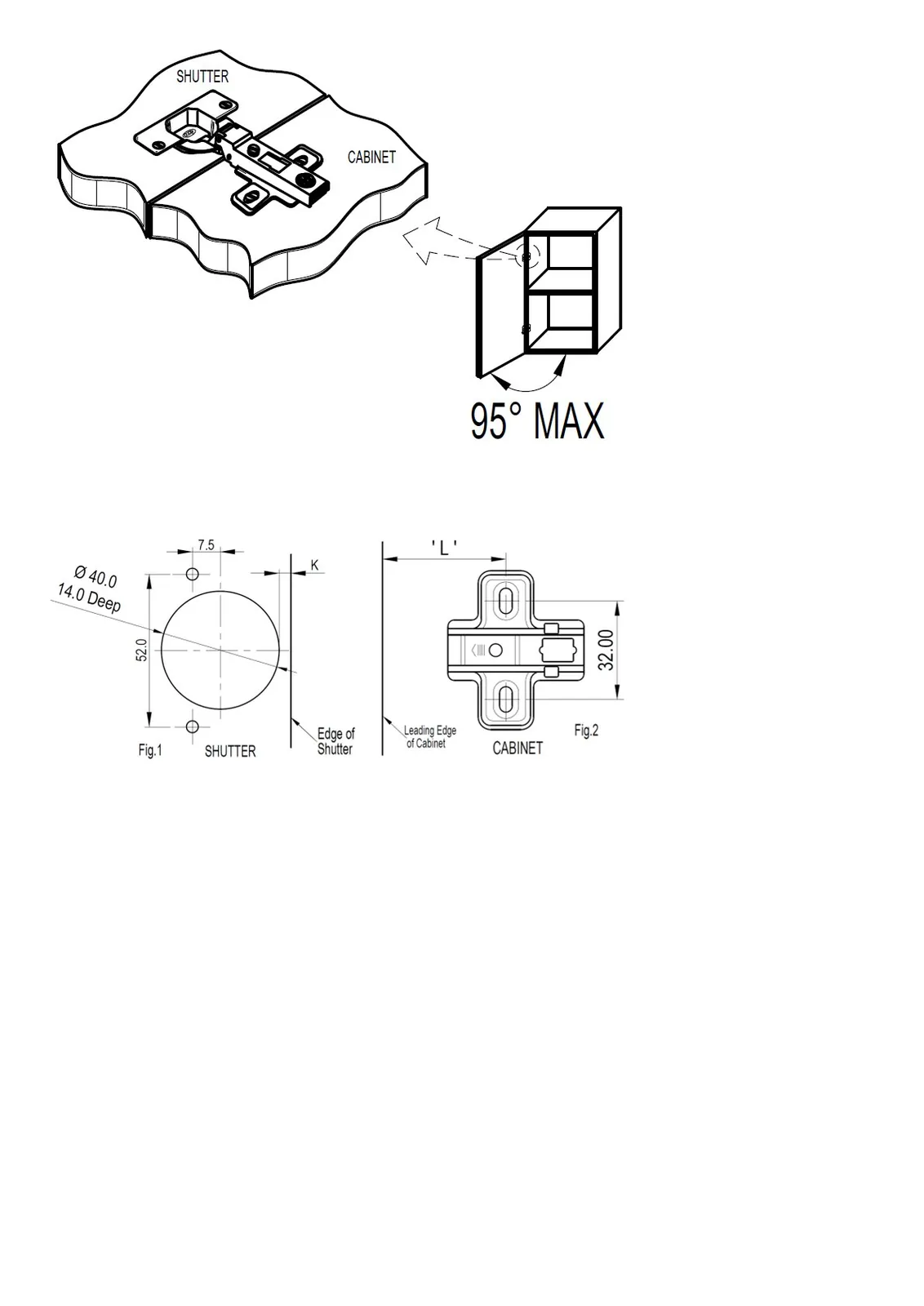

- Max. opening: 95° & Hinge cup - 40mm dia
- Shutter Thickness: 18mm - 30mm
FAQs
1. What type of overlay does this Ebco hinge support?
This Ebco HTD1-SC hinge is specifically designed for Full Overlay applications, featuring a 0 Crank mechanism for doors that completely cover the cabinet frame.2. What is the diameter of the hinge cup?
The hinge cup for this Ebco Thick Door Hinge has a diameter of 40mm, suitable for corresponding bore holes in your cabinet doors.3. What door thickness is compatible with this hinge?
This Ebco hinge is designed to accommodate cabinet doors with a shutter thickness ranging from 18mm to 30mm, ensuring a secure fit.4. How many hinges are included in one set?
Each product set of the Ebco Hardware Thick Door Hinge (HTD1-SC) includes 2 individual hinges, ready for installation.5. What is the maximum opening angle for this hinge?
This Ebco Thick Door Hinge allows for a maximum opening angle of 95 degrees, providing ample access to your cabinet contents.6. Is this a soft-close hinge?
No, this Ebco HTD1-SC hinge features a regular close mechanism, as indicated by its product description. It does not have a soft-close function.7. What material is this hinge made from?
The Ebco Hardware Thick Door Hinge (HTD1-SC) is constructed from durable metal, ensuring longevity and reliable performance for your cabinet applications.AI generated
Ebco Hardware Thick door hinge Regular Close Cup Diameter 40mm 0 Crank (Full Overlay) Nickel Plated Finish code: HTD1-SC
size name:0Crank
Delivery details
your selected location
Professional tips
Before purchasing, verify your cabinet door's thickness to ensure it falls within the 18mm to 30mm range supported by this Ebco hinge. Also, confirm that a Full Overlay hinge with a 0 Crank is the correct type for your specific cabinet design.
AI generated
