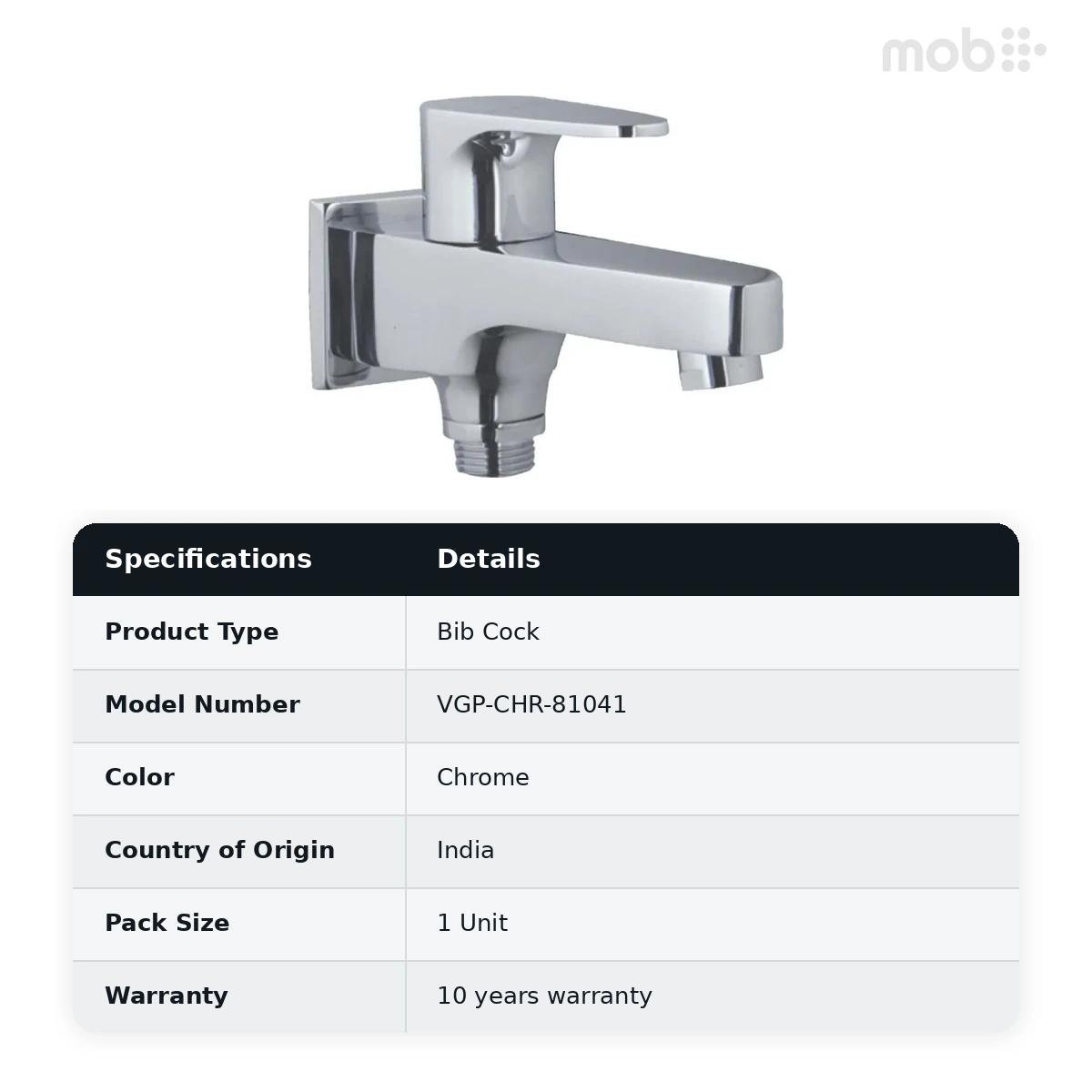

Name: Jaquar Vignette Prime 2 Way Bib Cock, Cat. No.: VGP-CHR-81041, Chrome
Brand: Jaquar
SKU: 580QWI323

Question 1

How do I identify the exact variant when reordering?

Accepted Answer

By the catalogue number rather than by the product name. Ranges carry many near-identical variants differing by finish, outlet or mounting, and the name alone will not distinguish them. Keep the catalogue code with the job file for whenever a part is needed.

Question 2

Does an exposed parts kit include the concealed body?

Accepted Answer

No. An exposed parts kit is the visible trim: handle, flange and escutcheon. The concealed body that carries the water is a separate catalogue item installed in the wall before tiling. Confirm what body is already in your wall before ordering the exposed half.

Question 3

Can I use one brand's trim on another brand's concealed body?

Accepted Answer

You should not assume so. Exposed parts are engineered to a specific body's spindle, spacing and wall depth, and even within one manufacturer ranges differ. Check with the supplier before ordering rather than after the tiles are up and the wall is closed.

Question 4

How deep can the finished wall sit from a concealed body?

Accepted Answer

Every concealed body has a stated depth range marked on it, within which the exposed parts will reach and seat properly. Tile plus adhesive plus levelling bed can easily add twenty millimetres beyond what was assumed at first fix, so check before ordering.

Question 5

Will it work on a gravity-fed overhead tank without a pump?

Accepted Answer

Where no minimum pressure is stated, ask before committing. As a rule a rain shower fed from a low overhead tank with a metre or two of head will underperform whatever the fitting. If the tank sits low relative to the bathroom, a pressure pump is usually part of the answer.

Question 6

Will the finish pit or discolour in hard water?

Accepted Answer

Chrome handles hard water better than most finishes, but scale still deposits on any surface. Wiping the fitting dry after use is what actually prevents the white crust. Acid-based bathroom cleaners and scouring pads etch plating, and that damage does not come back out.

Question 7

Who installs it, the plumber or the tiler?

Accepted Answer

The plumber, at second fix. The tiler's job is to leave a clean opening at the right depth around any concealed body. An oversized tile cut may not be covered by the flange and an undersized one stops it sitting flat, so the two trades have to be coordinated.
