Product details

RR Kabel FR-LSH is a flexible single core house wire with Flame Retardant Low Smoke and Halogen (FR-LSH) PVC insulation. This 1 sq mm wire in red comes as a 200 metre coil. It has a flexible electrolytic annealed plain copper Class 5 conductor to IS 8130, is IS 694 marked for use up to 1100 V and is FIA/TAC approved. Under IS 10810 tests it is self-extinguishing, with an oxygen index above 29%, a temperature index of at least 250 degrees C, smoke density below 60% and acid gas generation below 20%. Operating temperature is -15 to +70 degrees C, and RR Kabel rates this size at 13 A. Choose the conductor size to suit the circuit load and have the wiring done by a qualified electrician.

Features

Hsn code

85446090

Manufacturer

R R Kabel Limited

Item type name

Wire

Number of packages

1.0

Unit count per product

1.0

Unit count type

Unit

Country of origin

India

Condition type

New

Currency

INR

Sustainable green material check

Item imported

Color names

Red

Size name

1 Sqmm

Are batteries included

Is product expirable

Specification

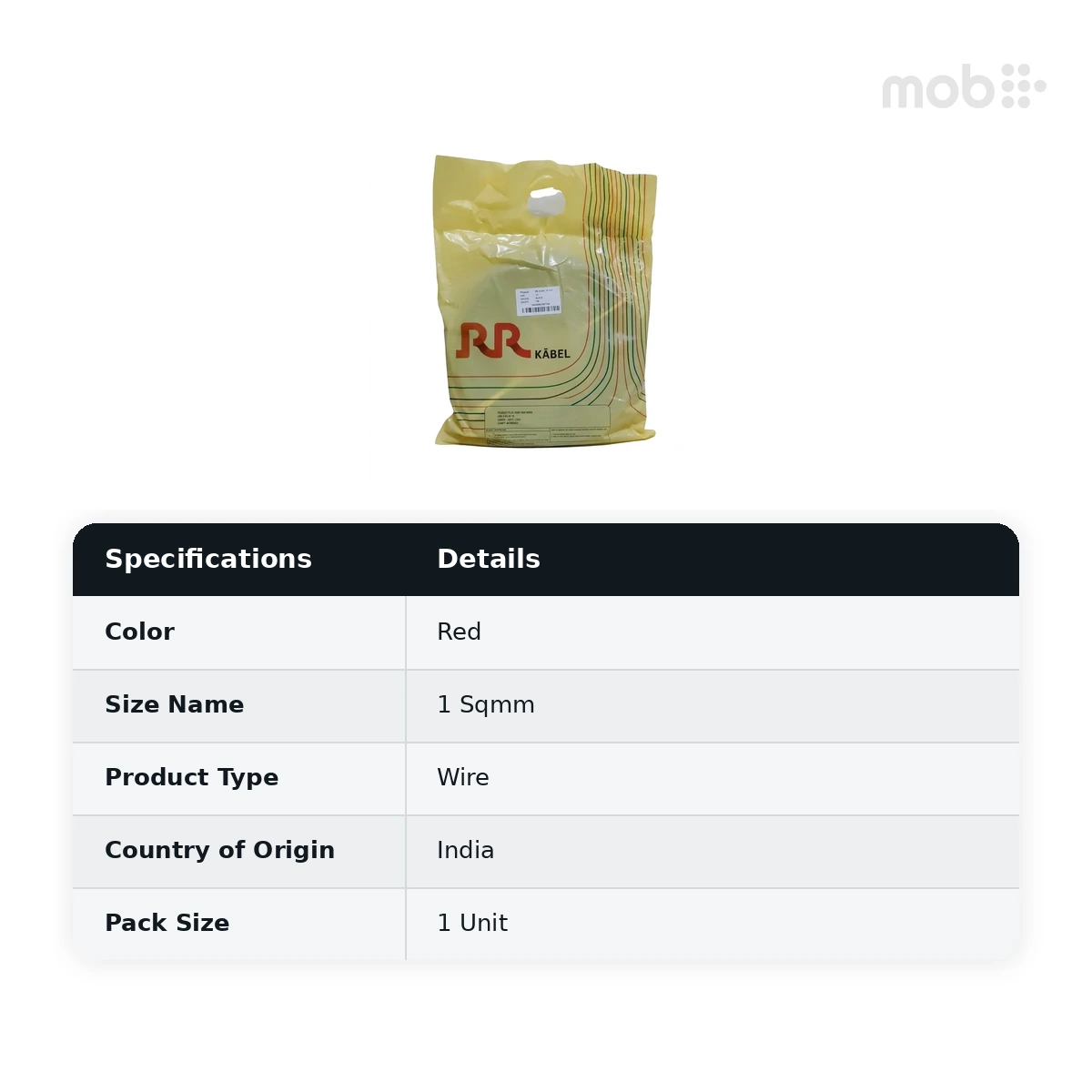

RR Kabel FR-LSH house wire, 1 sq mm, Red, 200 metre coil
Flexible electrolytic annealed copper, Class 5 conductor (IS 8130)
Flame Retardant Low Smoke and Halogen PVC insulation: smoke density below 60%, acid gas below 20%
IS 694 marked, up to 1100 V, FIA/TAC approved; oxygen index above 29%
Current rating 13 A as published by RR Kabel; operating temperature -15 to +70 degrees C
